    • SbS21% 1030

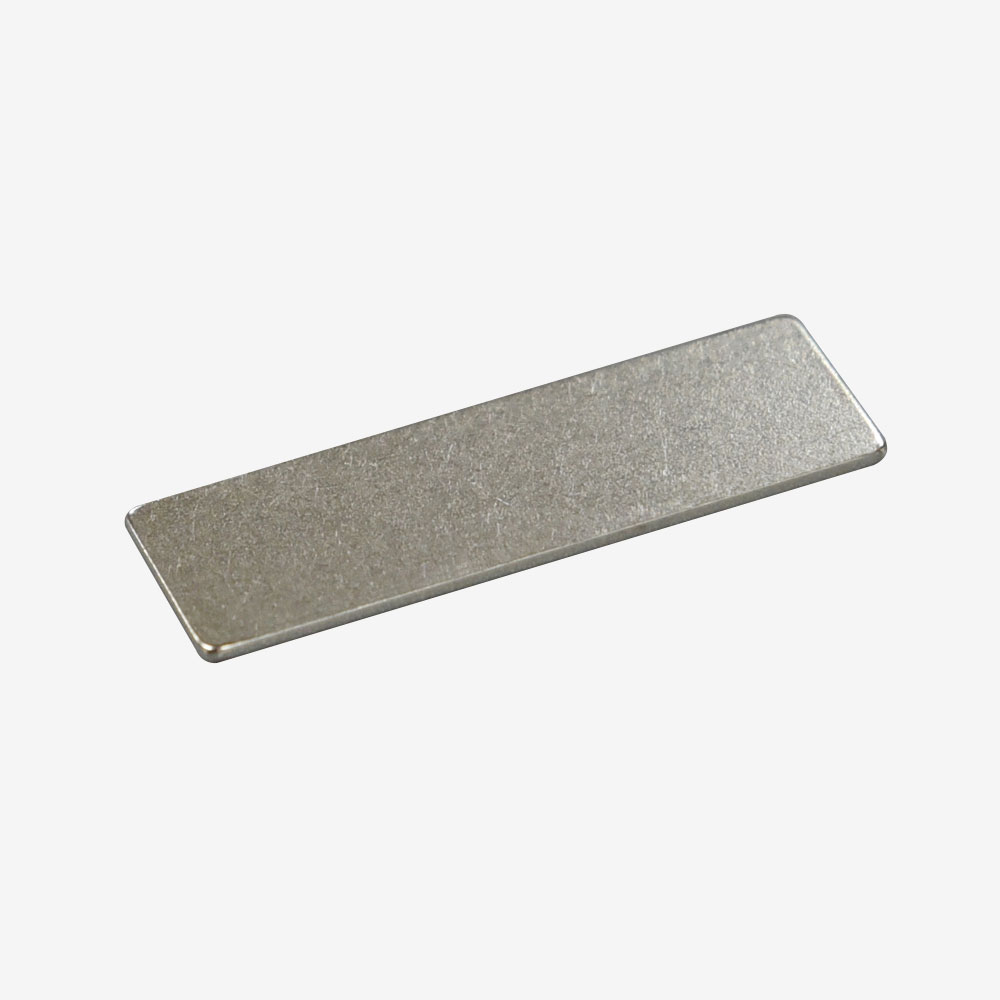

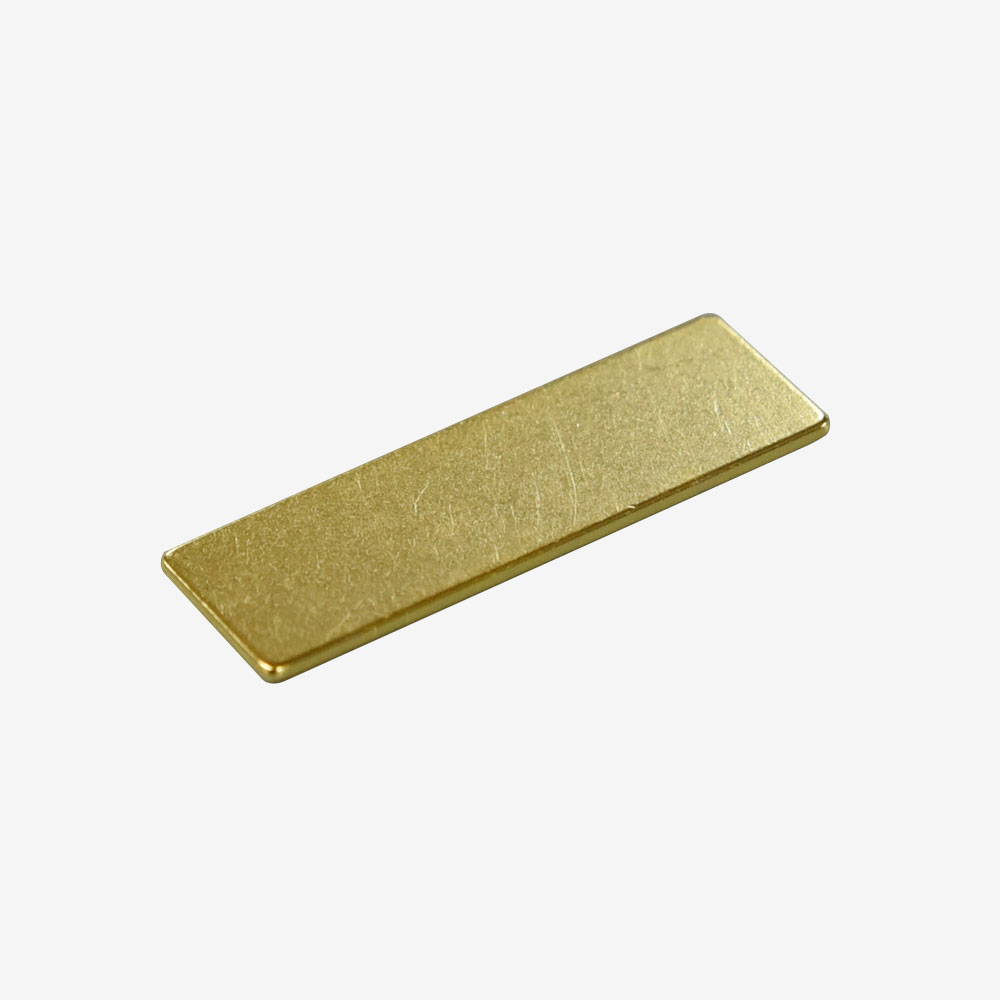

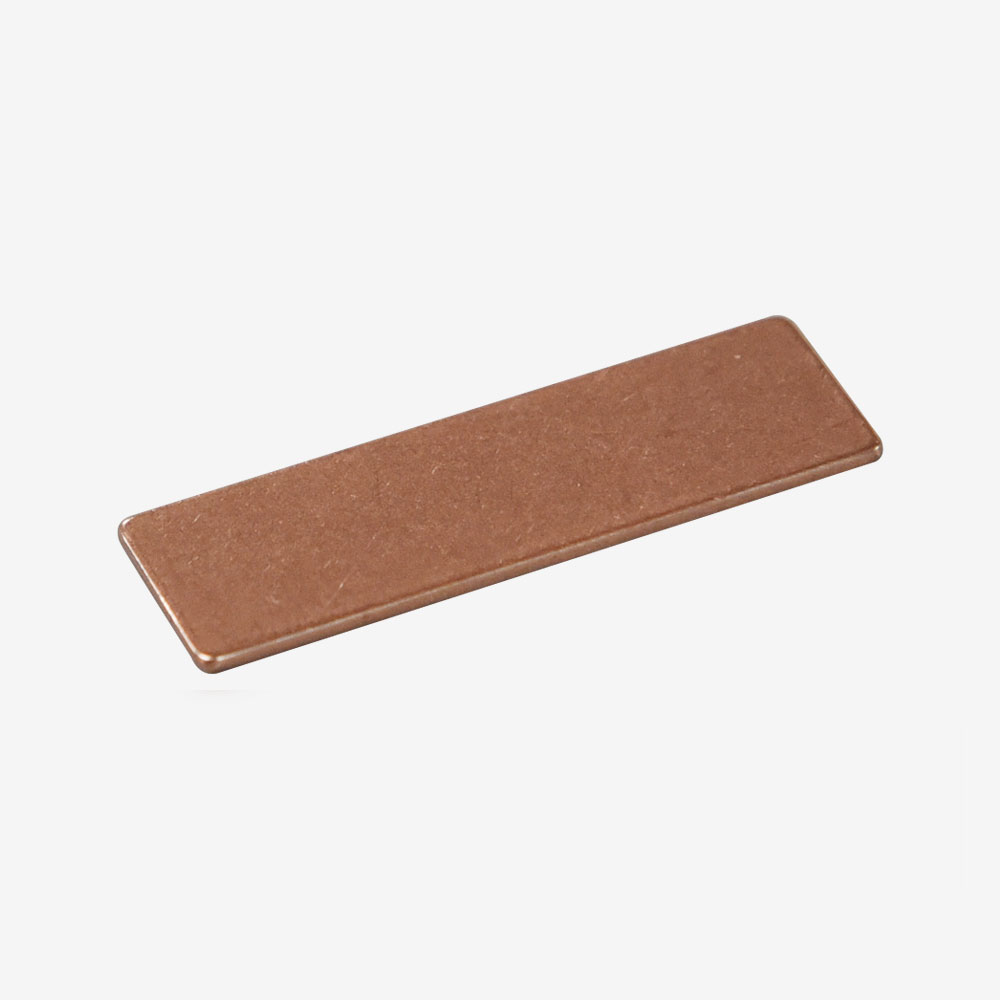

    Heat spreader for RF device

    Dimension

    Width : 30mm

    Length : 10mm

    Thickness : 1.5mm

    Features

    High Thermal Conductivity

    Low CTE ( Keep CTE low @ 200℃)

    Exact CTE matching with Ceramic

    Product Inquiry List

    Specification

    Properties Values
    TC xy (W/mK) 337
    TC z (W/mK) 295
    CTE (ppm/K) @ 800℃ 7.98
    Electrical Conductivity (%IACS) 83.2
    Density (g/㎤) 9.22
    Tensile Strength (Mpa) 322
    ※ TCxy represents the thermal conductivity (TC) in the plane direction of the heat spreader, that is, the x-axis and y-axis directions, and TCz represents the thermal conductivity in the thickness direction of the heat spreader.

    Product Properties

    The values in the tables and graphs guide the material properties in a wide range to explain TGS products.
    COC (Certificate of Conformance) will be issued after confirming the detailed specification.

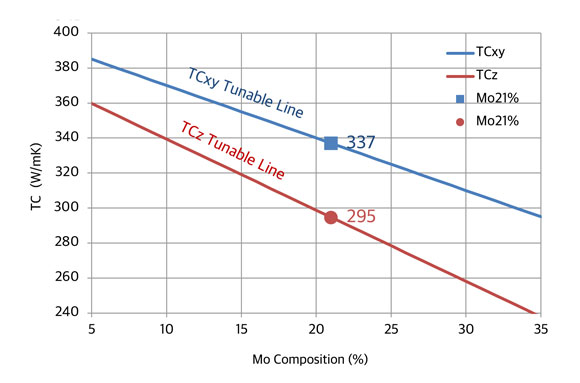

    • Thermal Conductivity (TC)

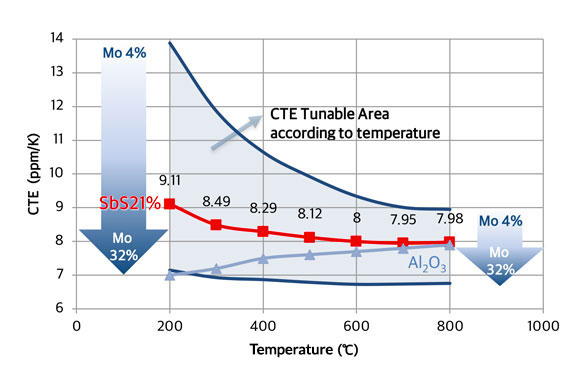

    • Coefficient of Thermal Expansion (CTE)

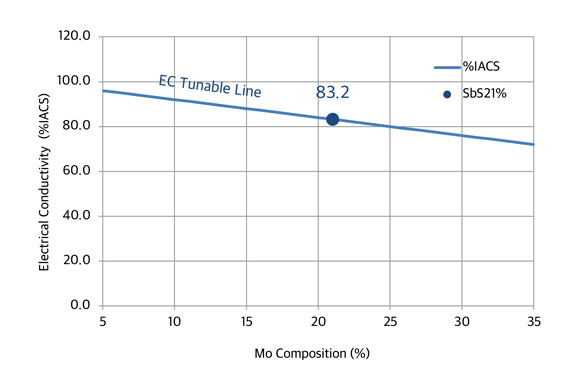

    • Electrical Conductivity (EC)

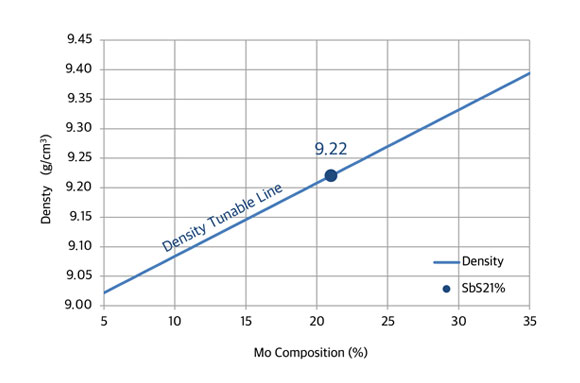

    • Density

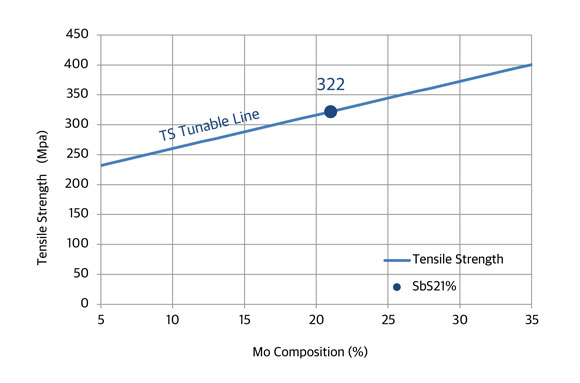

    • Tensile Strength (TS)
